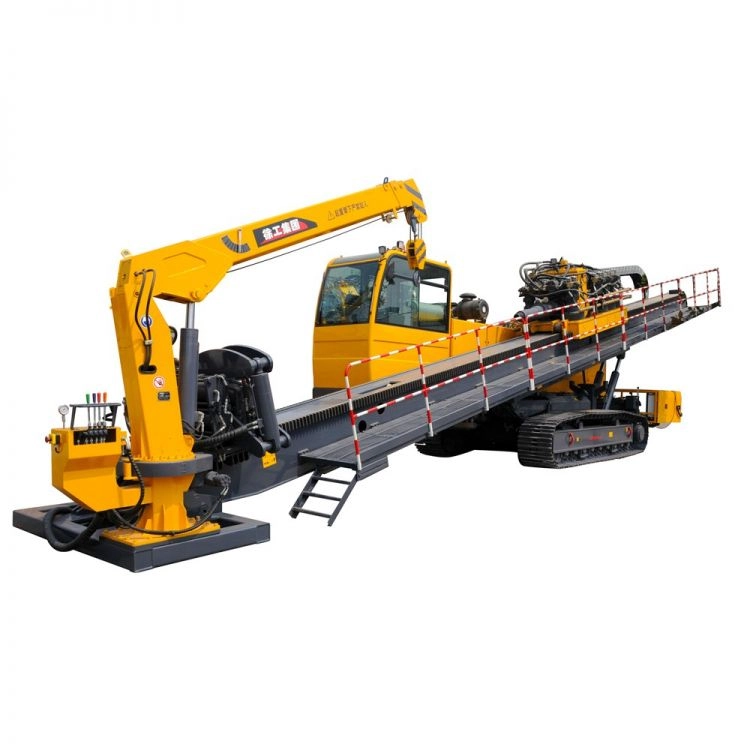

Horizontal Directional Drilling, or HDD for short, has changed underground building work in a big way. It gives workers a simple way to put in utilities without messing up the top of the ground. These utilities include water lines, gas pipes, and fiber optic cables. HDD rigs have become a very important tool in trenchless technology today. They help put pipelines, cables, and tubes in place. They do this with almost no trouble on the surface.

This article looks at what HDD rigs do. It also talks about the good points they have. And it explains why these rigs are so necessary for building projects right now. Many people in the construction field use them every day because they make jobs easier and cleaner.

Understanding Horizontal Directional Drilling (HDD)

Horizontal Directional Drilling is a method to install pipes and cables under the ground. It works without touching the surface at all. Traditional digging needs big open trenches. HDD is different because it goes in a curved path. This lets crews work under roads, rivers, or other blocks in the way.

The whole job usually has three main steps. First, workers drill a pilot hole. Next, they make the hole bigger in reaming. Last, they pull the pipe through. These steps help the work go smoothly. They also keep the job safe and quick.

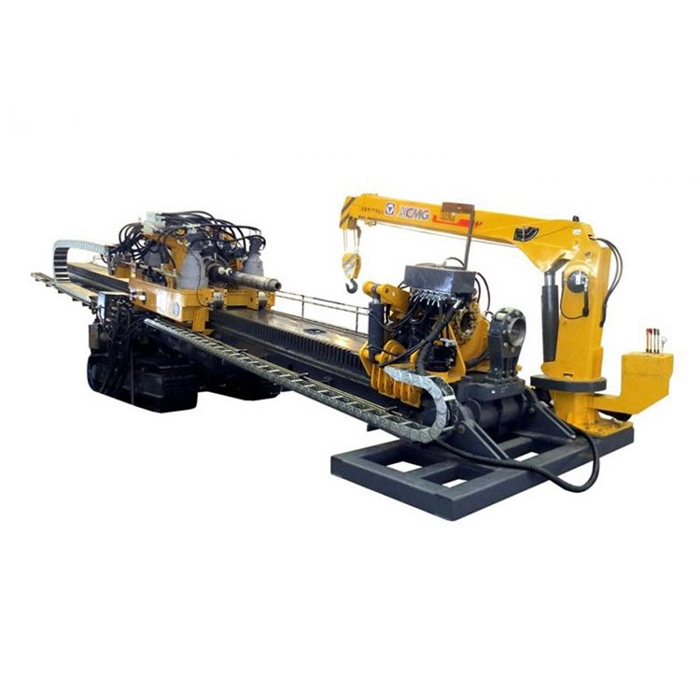

Functions of Horizontal Directional Drilling Rigs

Horizontal Directional Drilling Rigs have many parts that work together well. These parts help the rigs do their jobs better. The main functions include three key stages.

1. Pilot Hole Drilling

The first stage starts with a small hole called the pilot hole. The rig guides this hole along a planned path under the ground. A drill head sits on the drill string. Workers steer it with a smart guidance system.

This system makes the path very accurate. The rig can move through tough spots without problems. It keeps the area around it safe too. No big mess shows up on top. This step is important because it sets up everything for the rest of the job.

2. Reaming

After the pilot hole is ready, crews need to make it wider. They pass a reamer tool through the small hole. The rig uses hydraulic power to turn the reamer. This action opens up the hole to the right size for the pipe.

The bigger hole fits the pipe just right. It lowers the chance of damage when the pipe goes in later. Workers check the size carefully at this point. This step makes sure the whole installation works without issues.

3. Pipe Pullback

Once the hole reaches the correct size, it is time to install the pipe. A pulling part on the rig grabs the pipe and draws it back through. The hydraulic system gives strong force to move it. This pull happens in a smooth and steady way.

The pipe slides in without bends or breaks. It ends up secure in the ground. This final step finishes the job quickly. It leaves the utility ready to use right away.

Advantages of Horizontal Directional Drilling Rigs

HDD rigs have many good points over old digging methods. These benefits make them popular in construction. Here are the main ones.

1. Minimal Surface Disruption

One big plus is that HDD causes very little trouble on the surface. It is a trenchless way of working. So there is no need for large open cuts or heavy digging. This is really helpful in busy cities. Digging there would stop cars and trucks. It would also bother other lines and pipes nearby. Parks and yards would stay the same.

HDD rigs solve this problem well. They work from below the ground. The top looks normal when the job ends. This makes them perfect for crowded or delicate places.

2. Cost-Effectiveness

HDD rigs may cost more at the start than old trenching tools. But they save money over time in many ways. There is less need to fix the surface after the job. Installation also finishes faster than before. This cuts down on total expenses.

Fewer workers are needed for the project too. Less material gets wasted as well. These savings add up quickly. Many companies pick HDD for this reason alone.

3. Versatility in Challenging Terrain

HDD rigs can handle many kinds of ground that old methods cannot touch. They work under rivers, roads, or other hard spots. Traditional digging would fail in these areas. But HDD gives crews the freedom to go around blocks.

This flexibility helps with large building jobs. Crews can plan paths that avoid problems. The rigs adjust to different land types easily. This is why they are chosen for tough projects all over.

4. Environmentally Friendly

HDD is good for nature because it disturbs very little soil. Less digging means less chance of dirt washing away. It also lowers the risk of dirty water in nearby streams. Plants and trees stay in place too.

The method uses fewer big machines overall. This cuts down on smoke and gas from engines. Projects end with a smaller impact on the land. Many groups like HDD for these green reasons.

5. Enhanced Safety

HDD rigs make work safer than old trenching ways. The drilling stays under control at all times. Crews avoid hitting other pipes or wires by accident. Workers also stay away from deep open holes.

This lowers the chance of falls or cave-ins. Everyone on the site feels more secure. Safety rules are easier to follow with HDD. The whole team can focus on the job without extra worry.

6. Efficiency and Speed

HDD rigs get the job done quickly once set up. The steps move along faster than digging long trenches. Projects finish in less time overall. This means less downtime for roads or businesses.

Infrastructure starts working sooner for everyone. Crews waste less time on cleanup too. The speed helps keep schedules on track. Many builders count on this quick pace.

Why Choose MachPlaza for Your HDD Needs?

With all these benefits in mind, it is smart to pick a good supplier for your HDD needs. The right company can make a big difference in how well the rigs perform.

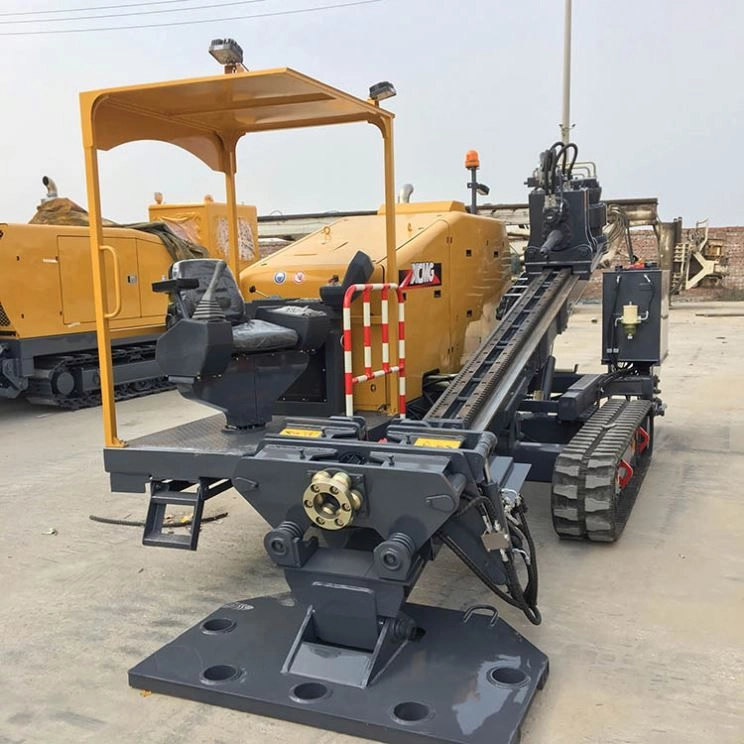

MachPlaza is a top supplier of Horizontal Directional Drilling Rigs. They offer high-quality machines that fit many types of modern building jobs. The company has many years of experience in this field. Every rig is made to high standards of strength and good performance.

MachPlaza cares a lot about its customers. They help you pick the best rig for your specific project. They also give strong support after the sale. This makes them a trusted partner in HDD work. If you need reliable equipment, MachPlaza is a great choice.

Conclusion

Horizontal Directional Drilling offers many benefits that make it the best choice for underground utilities today. It causes little surface trouble and saves money in the long run. It also helps the environment and keeps workers safe. The rigs are fast and work in many types of land.

MachPlaza stands out as a leader in this technology. They provide strong rigs that meet the needs of construction teams. Whether your project is big in a city or small in a special spot, MachPlaza can help. Their rigs and support make every job easier and better. Many builders trust them for good results every time.

FAQs

1. What is the main advantage of Horizontal Directional Drilling over traditional trenching?

The biggest advantage is less mess on the surface. There is no need for big digging or fixing the ground later. This helps a lot in cities and places where nature is important. Traffic keeps moving. The area looks normal fast.

2. Can HDD be used for installing all types of underground utilities?

Yes, it works for many kinds. This includes water pipelines, gas lines, electric cables, and fiber optics. The method is flexible. Crews can adjust it for different sizes and lengths.

3. Is HDD safe for the environment?

Yes, it is a good choice for nature. It disturbs less soil than old methods. Plants stay safe. The risk of dirty water drops a lot too. It also uses fewer machines, so less pollution happens.

4. How do HDD rigs ensure precise drilling?

They use smart guidance systems. These systems help steer the drill head exactly. The path follows the plan closely. It avoids other objects under the ground.

5. How quickly can a Horizontal Directional Drilling project be completed?

The time depends on the ground, the length, and the pipe size. But it is usually faster than old trenching. Projects finish sooner. This saves time and money for everyone.
