Max Pull/Thrust Force：370kN
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

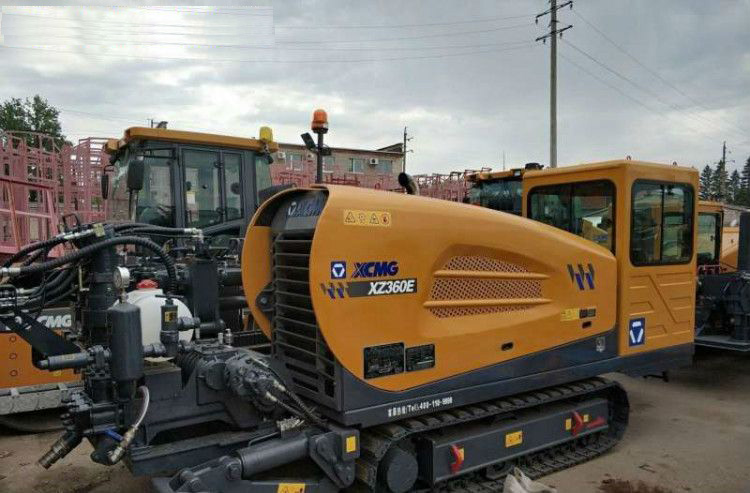

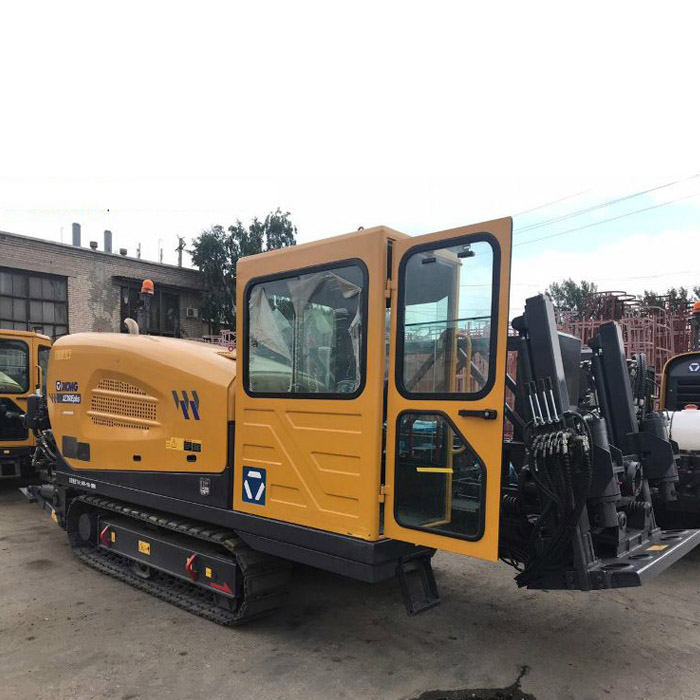

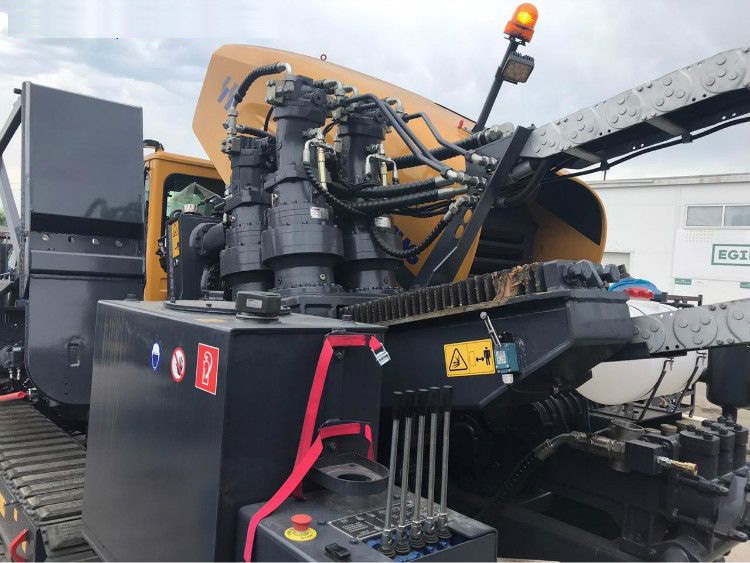

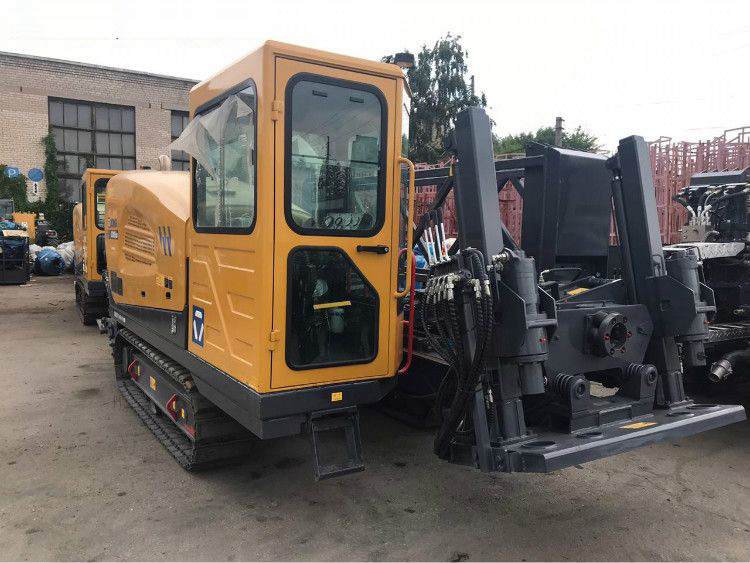

XCMG XZ360E Horizontal Directional Drilling Rig
It’s applicable for pipeline construction about Municipal Construction (Electric,Communication,Water Supply) and Natural Gas,Oil Delivery.
Parameter
| Engine | |
| Model | Cummins QSB5.9-C210 |
| Power rating | 154/2200kW/r/min |
| Thruet-Pull | |
| Max pull/thrust force | 370kN |
| Max pull/thrust speeed | 34m/min |
| Rotation | |
| Torque | 13200N·m |
| Max spindle speed | 140r/min |
| Mud pump | |
| Max fiow rate | 400L/min |
| Max pressure | 8MPa |
| Pipe | |
| Diameter×Length | φ73/φ83×3mm×m |
| Loader Crane | |
| Lifting weight | / |
| Loading capacity | / |
| Max inclination angle | 20° |
| Max backreamer diameter | φ900mm |
| Weight | 10.5t |
| Diamension（L×W×H） | 6200×2280×2450mm |
| Power Station dimension | / |
| Power Station weight | / |
