View larger image
Max. Working Height：18.015m
Max. Platform Height：16.015m
Max. Working Range：10.27m
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

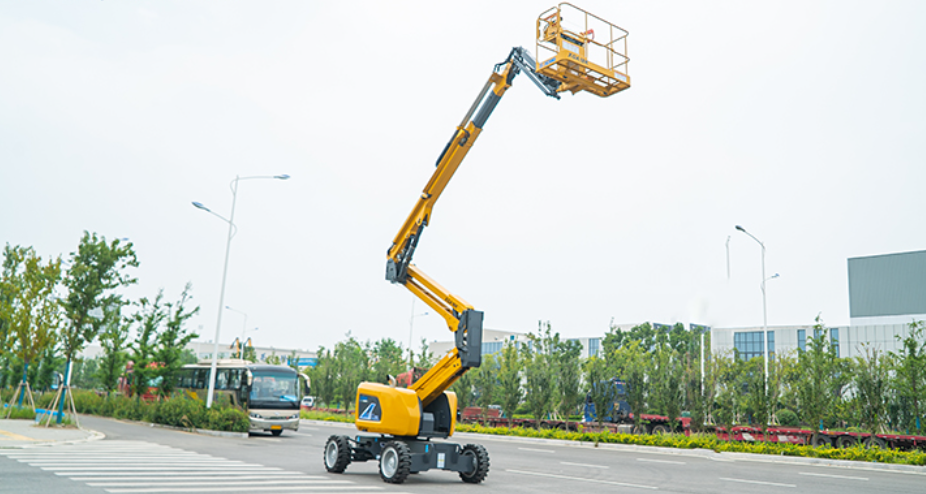

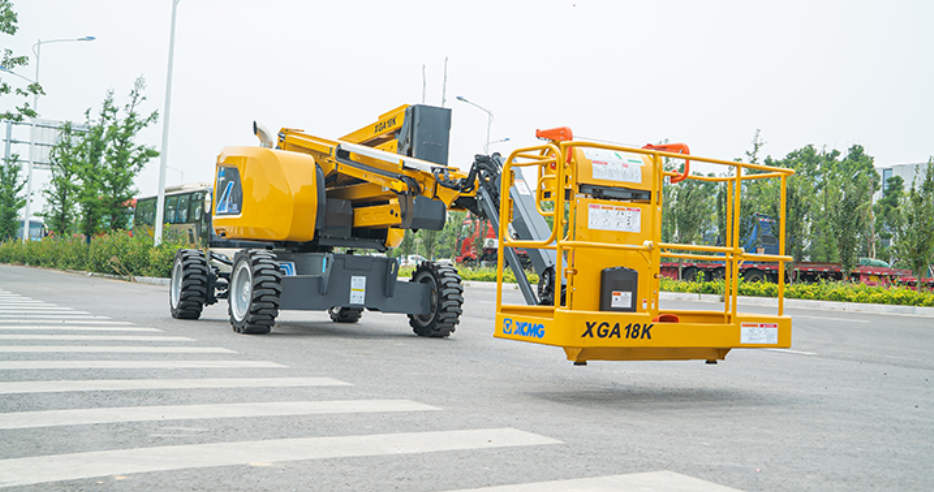

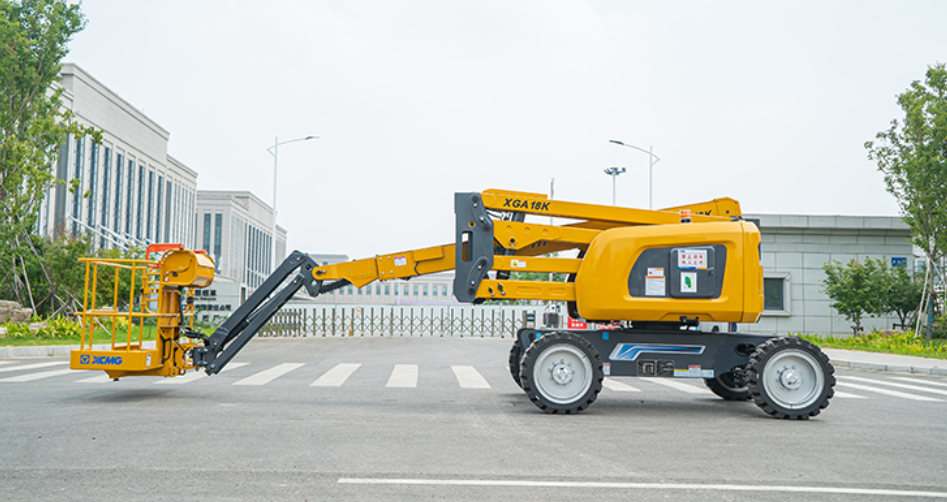

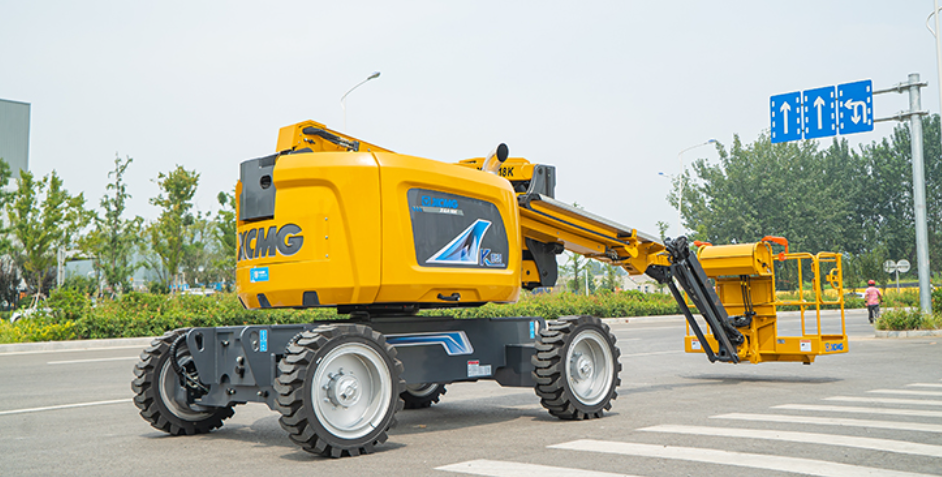

XCMG XGA18K Articulating Boom Lift
XCM-G new 4×4 drive 18m articulated boom lifting platform XGA18K is a mobile articulated boom elevating work platform with compact layout, high obstacle-crossing efficiency, accurate design, powerful drive, and easy operations.
XCM-G Articulated Boom Lift has models in the whole series, and the operation height covers 18m-26m and the maximum loading is 350kg.
The whole series meets the requirements of 4×4 drive, which has the advantages of zero emission and no noise, strong off-road performance, and can adapt to various complex and large-span working conditions.
Highlights:
1. Long endurance design.
2. Longer driving range capacity.
3. AC electric drive traveling technology steering differential control technology.
4. Independent emergency power source.
Parameter
| Max. Working Height | 18015mm |
| Max. Platform Height | 16015mm |
| Max. Working Range | 10270mm |
| Max. Load Capacity | 265kg |
| Boom Luffing Range | 0~65° |
| Rotation Angle of Turntable | 360 continuous |
| Rotation Angle of Platform | / |
| Max. Tail Wagging | / |
| Max. Travel Speed | 5.5km/h |
| Min. Turning Radius | ≤4700mm |
| Min. Ground Clearance | / |
| Max. Grade Ability | / |
| Tire Specification | / |
| Engine Model | Yuchai YCF3050-T302/Kubota V2403-M-DI-ET04e |
| Rated Power of Engine | 36.8 /36.5kw |
| Total Weight | 8700kg |
| Platform Size | 1830×760×1150mm |
| Overall Length | 7575mm |
| Overall Width | 2320mm |
| Overall Height | 2380mm |
| Wheel Base | 2360mm |
