Load capacity： 230kg
Load capacity of extended platform ：115kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

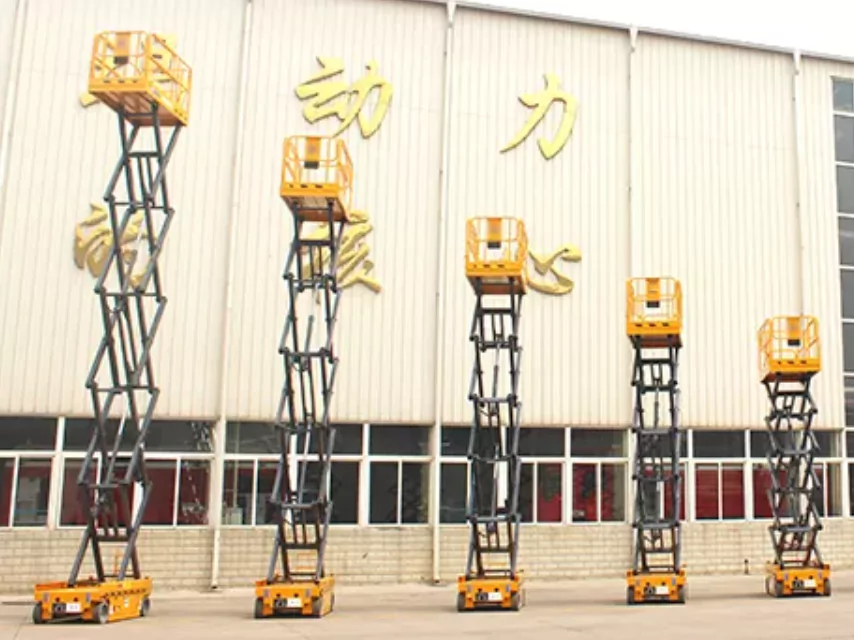

XCMG XG1930DC Scissor Lift
The XCMG XG1930DC is a newly developed elevating work platform with a working height of 25 feet 7 inches (7.8 meters), an overall width of 2 feet 6 inches (0.76 meters), a load capacity of 507 pounds (230 kg), a platform extension length of 2 feet 11 inches (0.9 meters), and a gradeability of 25%. This compact, high-performance machine offers complete safety protection, making it ideal for building construction. With zero emissions, high environmental friendliness, stable lifting and lowering, easy operation, and convenient maintenance, it is well-suited for use in factories, warehouses, airports, and stations, especially in confined working spaces.
Parameter
| Load capacity | 230kg |
| Load capacity of extended platform | 115kg |
| Max.Occupant Capacity | / |
| Max.Working height | 15.7m |
| Max.Platform height | 13.7m |
| Overall length（no ladder） | 2840mm |
| Overall width | 1270mm |
| Overall height（platform folded） | 2600mm |
| Working platform dimension（Length x Width） | / |
| Length of extension platform | 900mm |
| Min.ground clearance（pit protector rising/descending） | 100/20mm |
| Wheel base | 2240mm |
| Min.turning radius（inner/outer wheel） | 0/2.65m |
| Lifting motor(kW) | 4.5kw |
| Max.Traveling speed at low level | 3.2km/h |
| Max.Traveling speed at high level | 0.8km/h |
| Lifting/Descending duration of platform | / |
| Max.gradeability | 25% |
| Max. Inclination（side/forward and backward） | / |
| Battery(v/Ah) | / |
| Charger(v/A) | / |
| Tire specification | Traceless and solid /381×127 |
| Total machine weight | 3350kg |
