Load capacity： 320kg
Load capacity of extended platform ：115kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

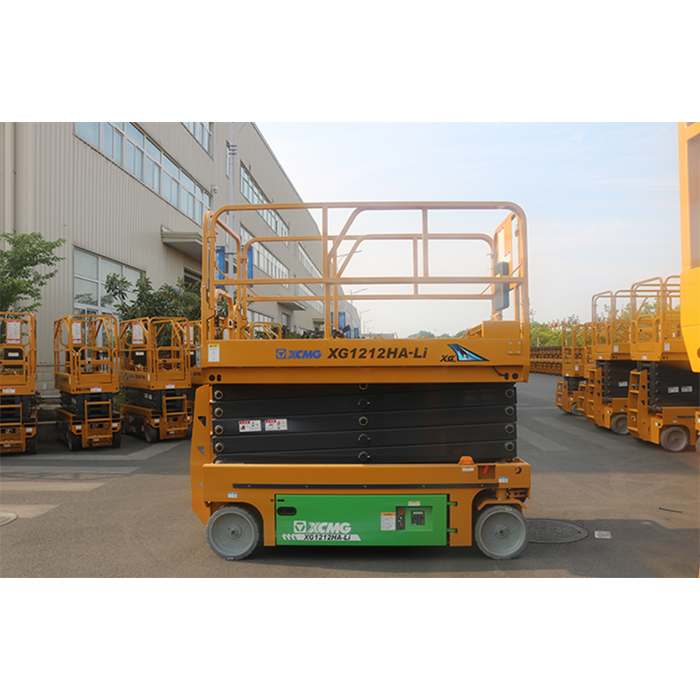

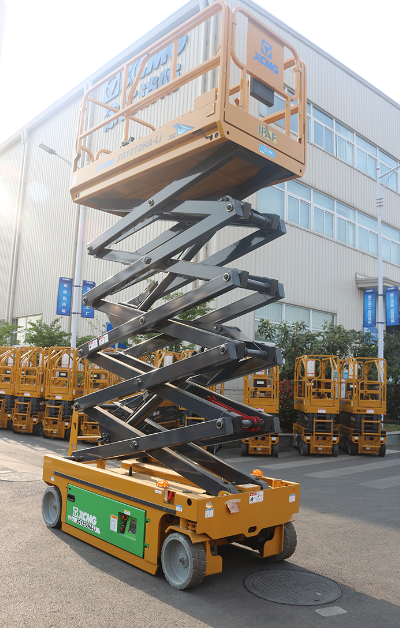

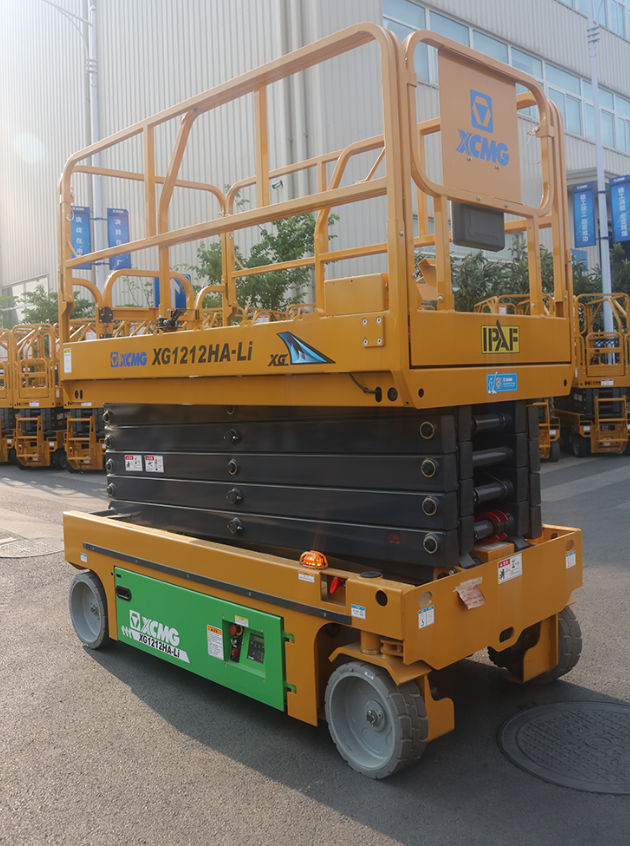

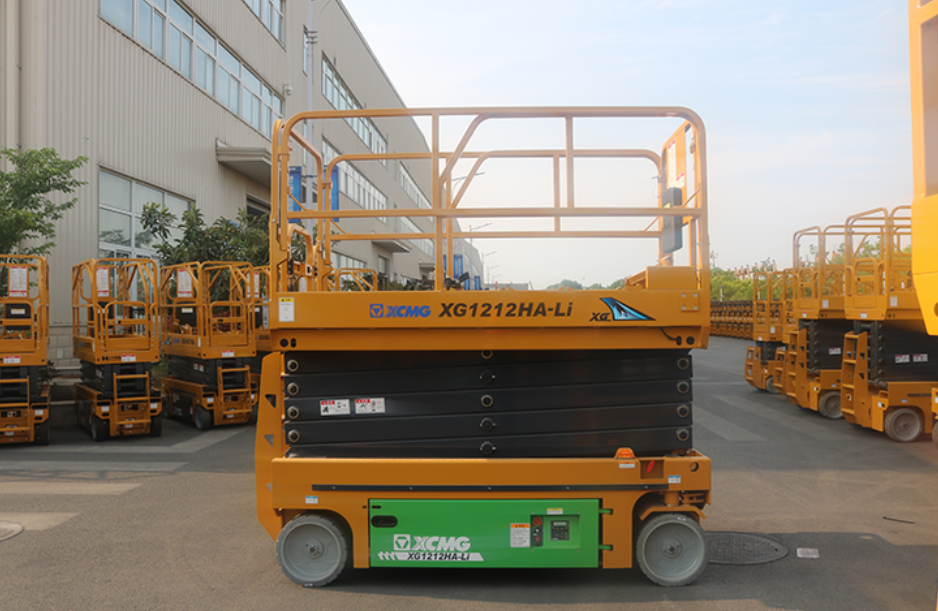

XCMG XG1212HA-Li Scissor Lift
Advantages and features:
1. The 256kg/350kg double high-load design meets the working needs under diversified working conditions.
2. The gravity lowering technology is applied for the boom to achieve higher stability and energy-saving.
3. The stepless speed regulation is applied to realize better operating comfort.
4. The non-power-supply design for the chassis improves the wading capability of the machine.
Parameter
| Load capacity | 320kg |
| Load capacity of extended platform | 115kg |
| Max.Occupant Capacity | 2 |
| Max.Working height | 12m |
| Max.Platform height | 10m |
| Overall length（no ladder） | 2477mm |
| Overall width | 1170mm |
| Overall height（platform folded） | 2480mm |
| Working platform dimension（Length x Width） | 2277 x 1120mm |
| Length of extension platform | 900mm |
| Min.ground clearance（pit protector rising/descending） | 100/20mm |
| Wheel base | 1877mm |
| Min.turning radius（inner/outer wheel） | 0/2.3m |
| Lifting motor(kW) | 4.5kw |
| Max.Traveling speed at low level | 3.2km/h |
| Max.Traveling speed at high level | 0.8km/h |
| Lifting/Descending duration of platform | / |
| Max.gradeability | 25% |
| Max. Inclination（side/forward and backward） | / |
| Battery(v/Ah) | 4 x 6/280V/Ah |
| Charger(v/A) | 24/30V/A |
| Tire specification | 381 x 127 |
| Total machine weight | 3000kg |
