XCMG XD103 Tandem Roller

Home Product Roller/Compactor Double Drum Roller

View larger image

Features

Engine Model：DEUTZ BF4M2012-10T3R

Operating Weight： 10000Kg
Axle Load Front：5000Kg

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

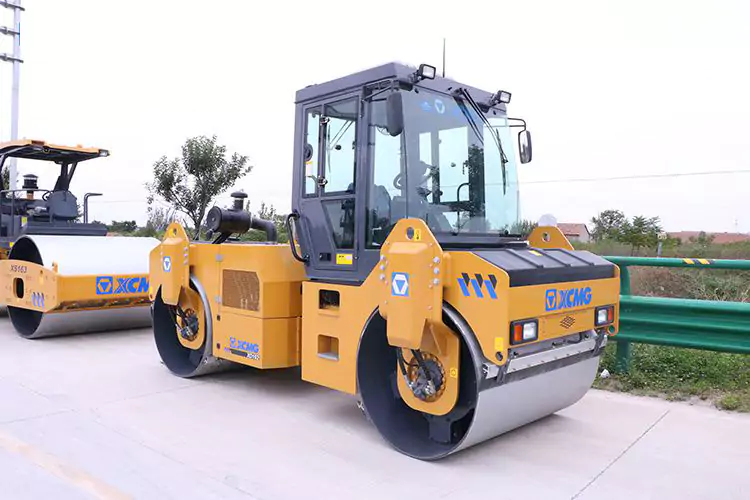

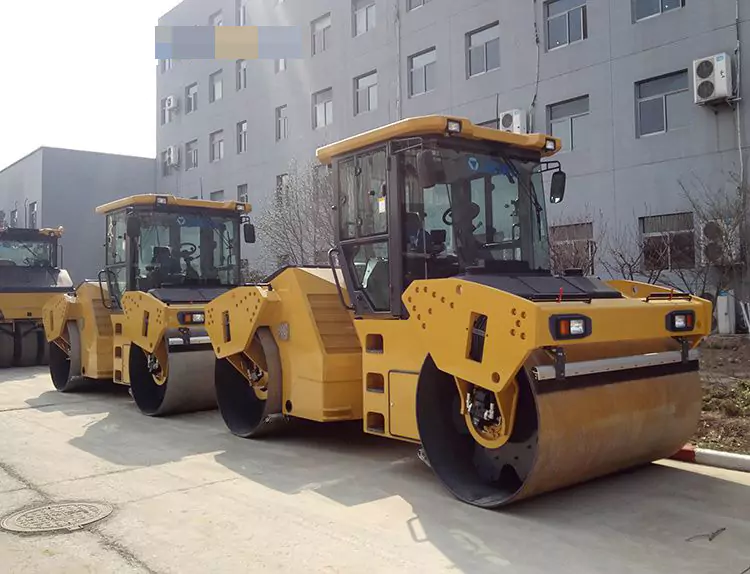

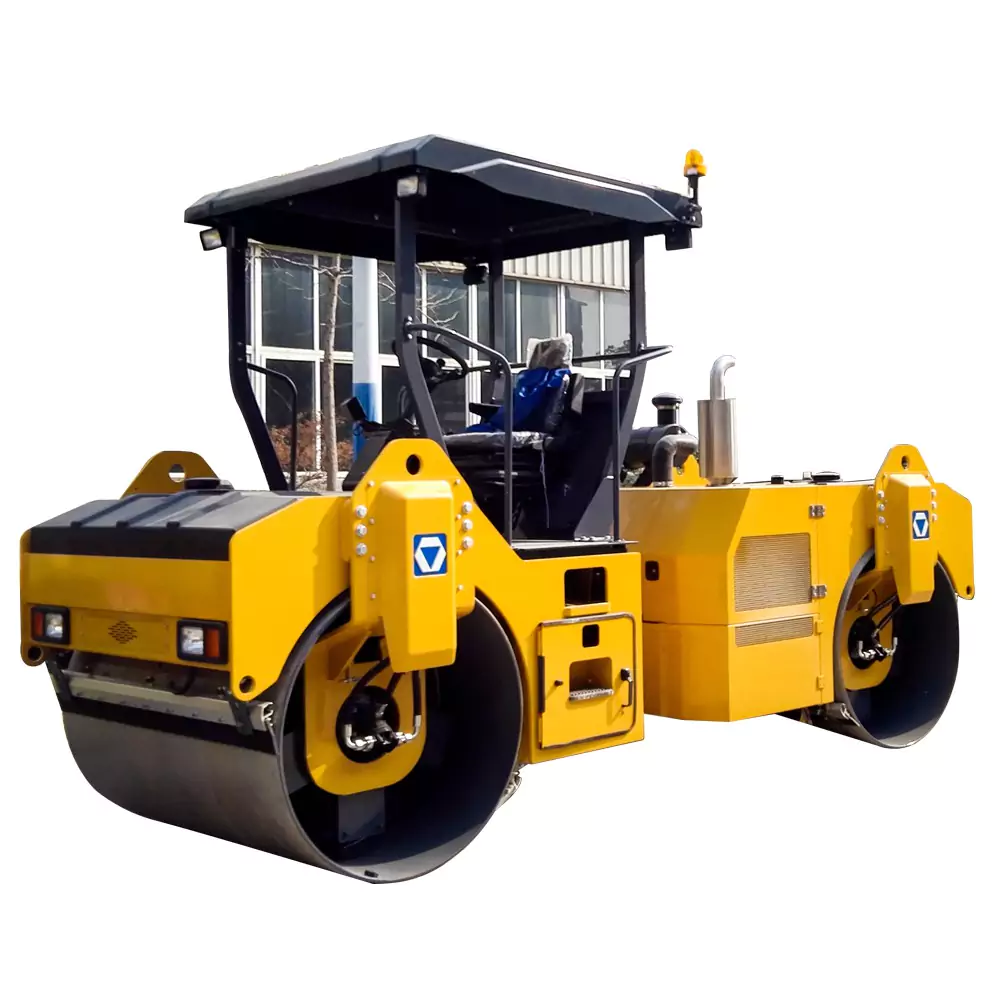

XCMG XD103 Tandem Roller

XD103 Vibratory roller is asphalt compaction machinery product which is independent researched and developed by XCMG road machinery business division based on years of experience in compaction machinery research and development. This product is designed for municipal administration maintenance and construction projects customers, is especially suitable for compacting asphalt concrete pavement, can also be used for compacting small and medium base, sub-base and filling materials, the whole machine structure is compact and flexible, is an ideal compaction equipment for construction of municipal maintenance and custody of highway asphalt surface course.

Parameter

Operating weight	10000Kg
Axle load, front	5000Kg
Axle load, rear	5000Kg
Static linear load	280N/cm
Engine manufacturer	DEUTZ
Engine Model	BF4M2012-10T3R
Rated Power	74.9Kw/2300rpm
Speed range (1)(2)(3)	0-6/0-12/-km/h
Vibration frequency	55/45Hz
Vibration amplitude	0.35/0.60mm
Centrifugal force	90/100kN
Working width	1750mm
Max. gradeability	35%
Track radius, out	4070/5280mm
Overall dimensions	4900×1960×3087mm
