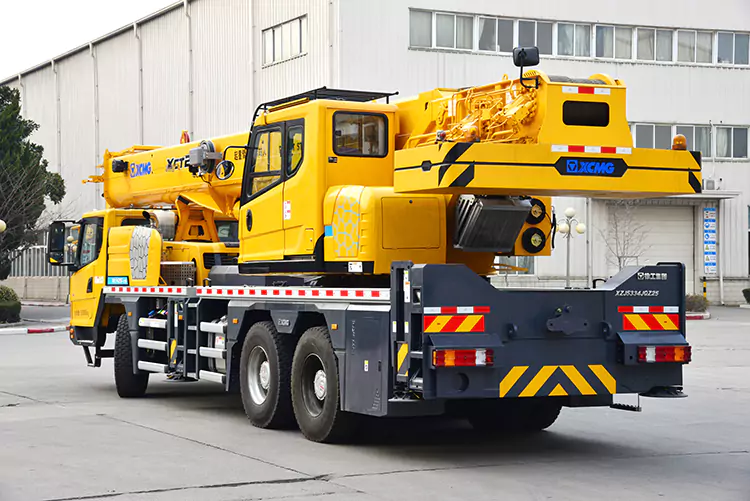

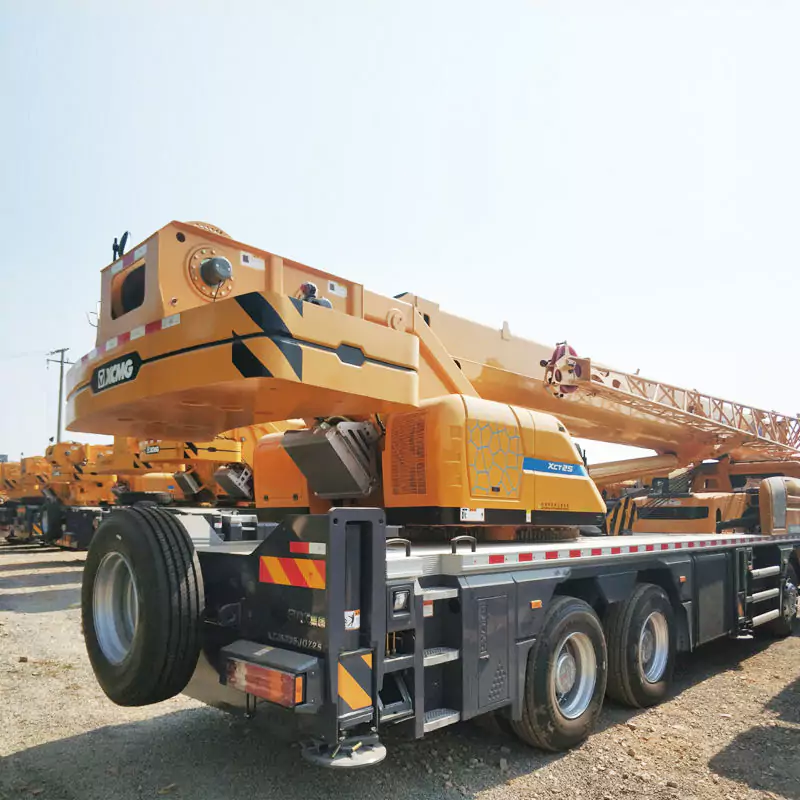

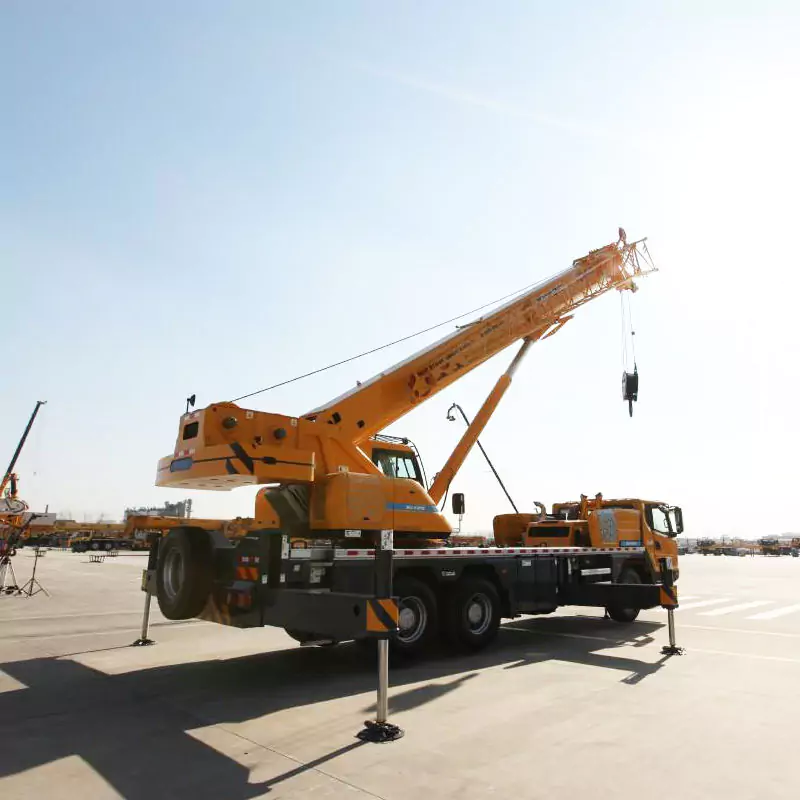

XCMG XCT25L5_Y Truck Crane

（1）Designed and manufactured by XCMG, it is made of high strength steel with fully covered walking surface and anti-torsion box-typed structure.

（2）Ergonomically designed operator’s cab, with swing-out door and adjustable seat. It is equipped with safe glass and roof protective grille. Windshield is equipped with sun visor. Air conditioning is standard.

（3）Exclusive dual-pump automatic confluence control technology ，high efficiency, durability and fine control (lifting: 2.5m/min, slewing: 0.1°/s)

（4）Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the grade-ability is 45%.

（5）High-power air conditioner is available in the operator’s cab with improved cooling effect

（6）5-section boom of 40.5 m with U-type profile is adopted; the max. lifting load is 25 t; the max. lifting height is 48.1 m; the max. working radius is 36.5 m; The performance takes the lead comprehensively.

（7）Diesel engine, with rated power of 192kW, and max. torque of 1000N.m (3)Max. travel speed 80Km/h, Max. grade ability 45%

（8） Slewing speed 0-2.5r/min

（9）Max. single line pull 27.6KN

（10）Max. hoisting 135m/min

（11）Waterproof connectors, with rubber sleeve, protection level IP67.
