Feature

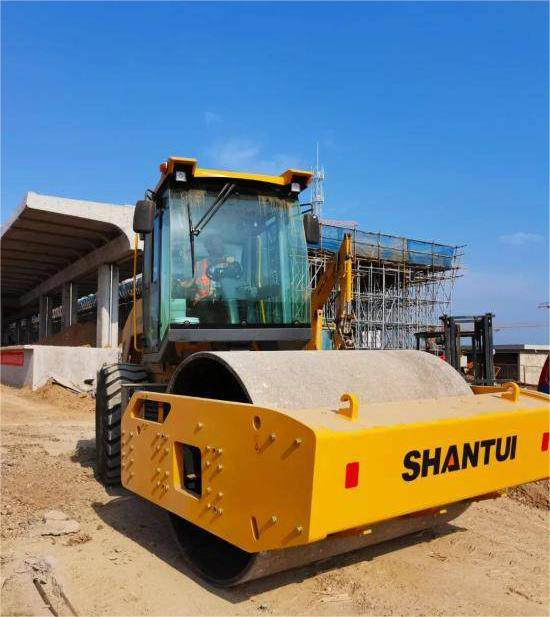

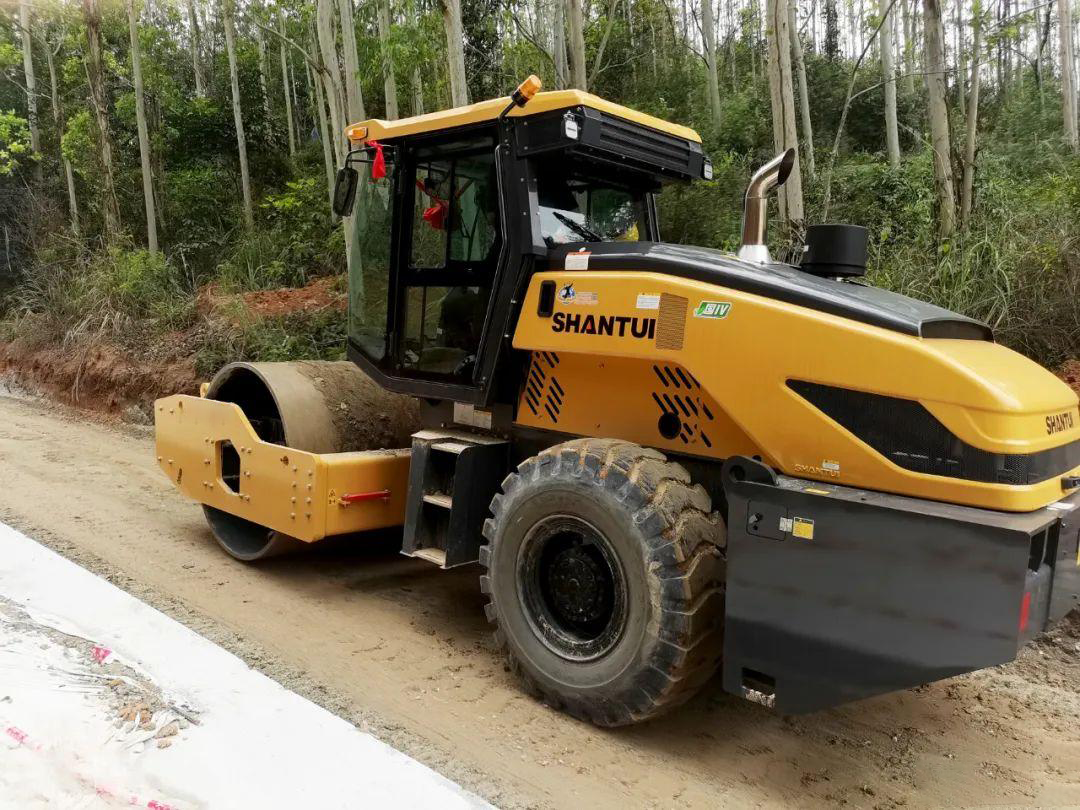

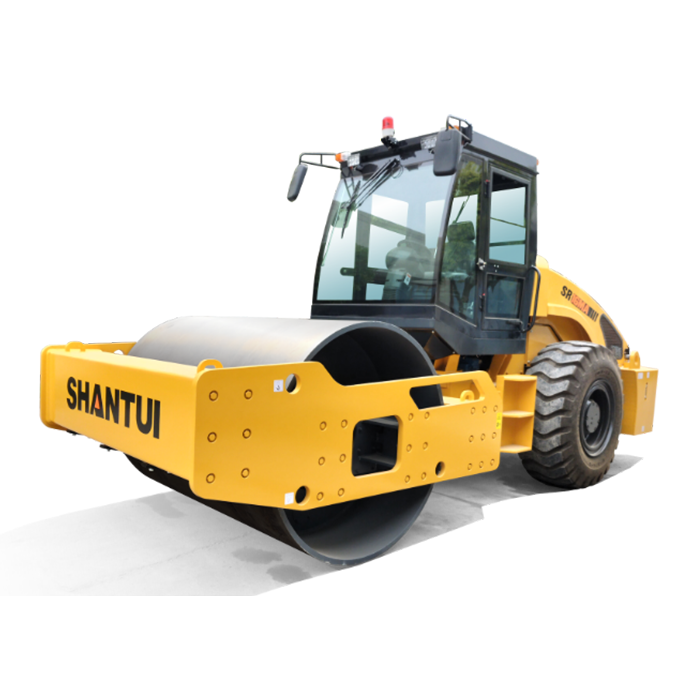

SHANTUI SR20M Single Drum Rollers & Soil Compactors● Mechanical drive, electronically controlled power shift gearbox.
● Hydraulic vibration and steering.
●Dual frequency double amplitude
● Unique air circuit control makes brake and clutch operation more portable, flexible, safe and reliable.
● The gear shifting and reversing operation adopts one-lever control, which makes the operation flexible, convenient and reliable. The whole machine has advanced and reasonable structure, light and flexible operation, and comfortable driving.
Parameter
| Operating weight | 20000Kg |
| Axle load, front | 10000Kg |
| Axle load, rear | 10000Kg |
| Static linear load | / |
| Engine manufacturer | / |
| Engine Model | / |
| Rated Power | 118Kw/2000rpm |
| Speed range(Forward)Speed (1)(2)(3)(4) | 0-2.55/0-5.03/0-8.3km/h |
| Speed range(Backward)Speed (1)(2)(3) | 0-2.55/0-5.03/0-8.3km/h |
| Vibration frequency | 28/32Hz |
| Vibration amplitude | 2.0/1.0mm |
| Centrifugal force | 355/220kN |
| Working width | 2140mm |
| Max. gradeability | 30% |
| Track radius, out | 6100mm |
| Overall dimensions | 6125x2425x3262mm |
