View larger image
Max. Working Height/Working Amplitude：21m/11m
Rated Flow of Pump：167L/s
Model of Chassis：VOLVO FM 500
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

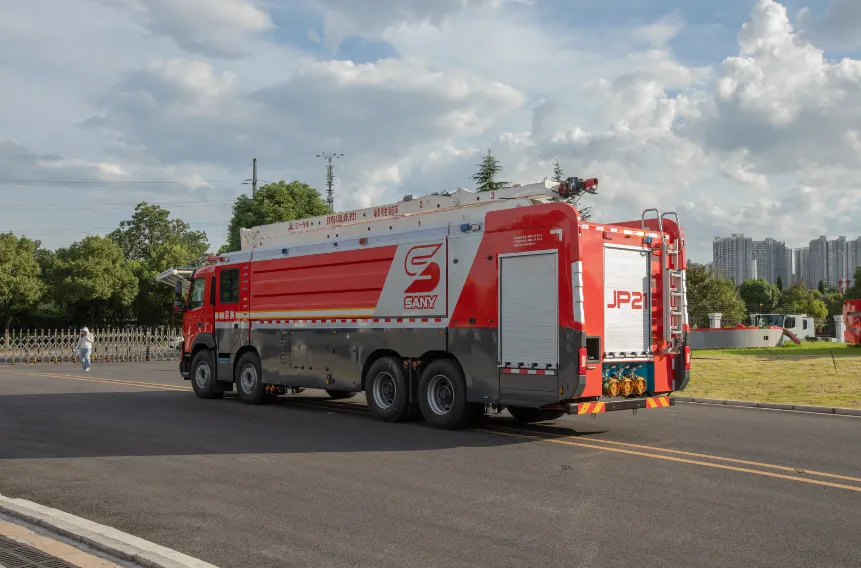

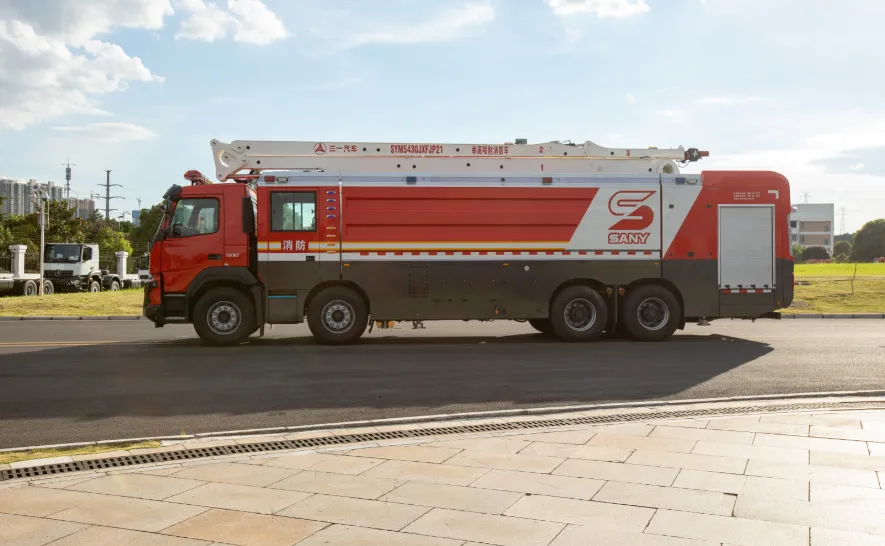

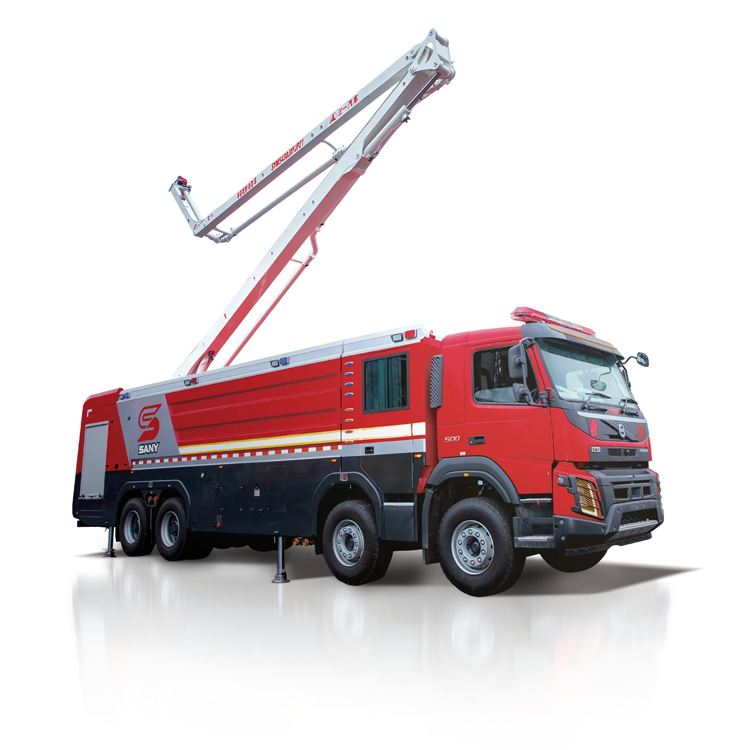

SANY SYM5511JXFJP62 Long Span Water Tower Fire Truck
Large Working Range

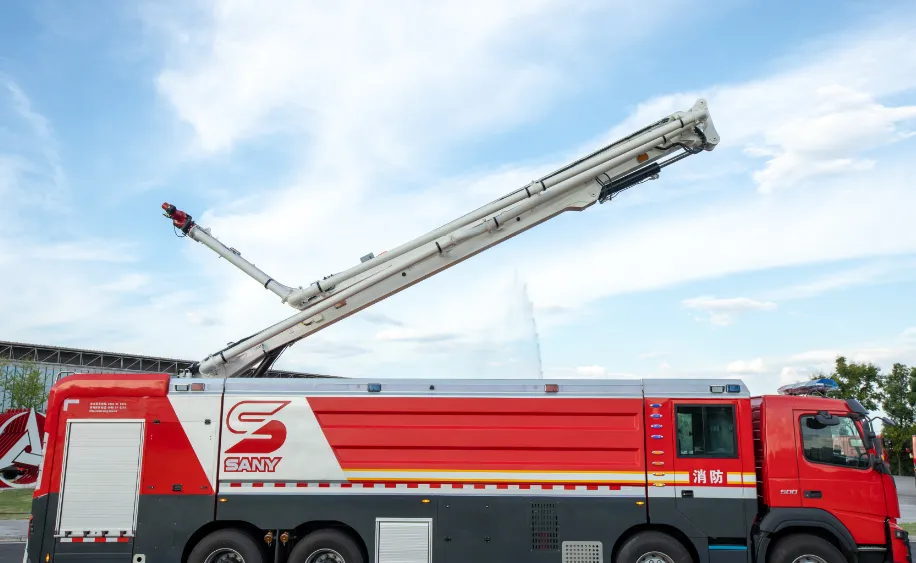

The unique positive and negative three-folded boom, with a working height reaching 21m, working amplitude enhanced by 30% compared with the routine boom.
Large Jetting Flow
The maximum jetting flow of a boom gun is 100L/s, and the maximum firing range of the fire control gun can be longer than 85m.
Large Carrying Capability
· The whole vehicle can carry 20t liquid, and the whole tank body adopts top-quality stainless steel, with strong anti-corrosion capability.
· It is provided with an independent passenger compartment, with the number of passengers able to reach 2+4+3 (optional).
Linkage Operation
· We can adjust the posture of the boom and water gun at will, “pumping water while moving
· boom”, so as to enhance the efficiency of fire extinguishment.
Parameter
| Max. Working Height/Working Amplitude | 21m/11m |
| Max. Downward Working Depth | / |
| Max. Working Amplitude in Case of 3.3m | / |
| Unfolding Time of Boom | <70s |
| Slewing Angle | 360° |
| Slewing Time | / |
| Overall Dimensions | 11.975*2.55*3.86 m |
| Max. Total Weight | 42685 kg |
| Max. Unfolding Span | 5.35*2.3m |
| Action Time of Support Leg | <30S |
| Model of Fire Control Pump | Hale 8FGR |
| Rated Flow of Pump | 167L/s |
| Rated Working Flow of Whole Vehicle | 160L/s |
| Model of Fire Control Gun | Akron 3480+5178 |
| Max. Jetting Range of Water Gun | 100L/s |
| Scope of Left & Right Swing Angles of Fire Control Gun | / |
| Allowable Working Pressure of Pipeline | 2.5Mpa |
| Model of Chassis | VOLVO FM 500 |
| Engine Power | 368kw |
| Tail Gas Emission Standard | EUR V |
| Manipulation Mode | Spot Control+Wire&wireless Control |
| Emergency Retraction Power | Gasoline Engine |
